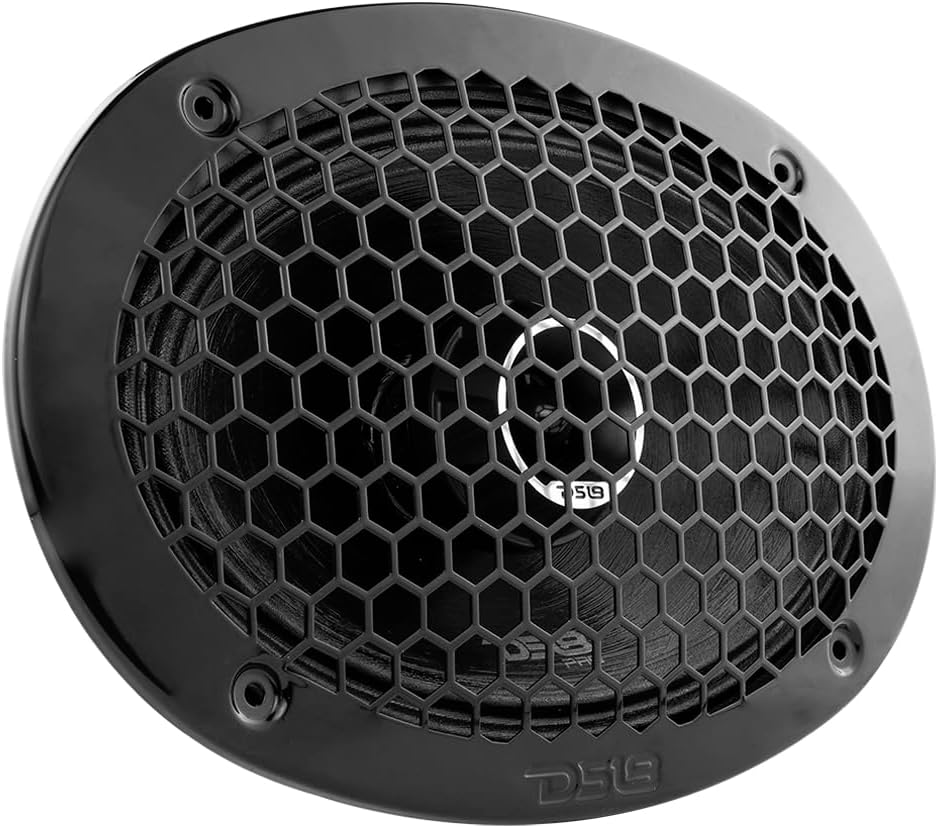

DS18 2X PRO-ZT69 6x9-Inch 2 Way Pro Audio Midrange Speakers with Built-in Bullet Tweeter, 4-Ohms, 550W Max, 275W RMS - Black Metal Mesh Grill Included (2 Speakers)
4.4 (60 items)
Limited Time SaleUS$119.97 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215174465 | Release Date | 2026/04/12 | List Price | US$79.98 | Model Number | 215174465 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build.Nominal Diameter: 6 x 9" Nominal Impedance: 4 Ohms RMS Power Handing: 275 Watts MAX Power Handing: 550 Watts Sensivity (1w/1m): 98dB Frequency Response: 60Hz - 22KHz Recommended Hi Pass Crossover: 80Hz Midrange Voice Coil Diameter: 1.5" (38.1mm) Voice Coil Former Material: Kapton Winding Material: CCAW Basket Material: Steel Magnet Weight: 27 oz Tweeter Voice Coil Diameter: 1" Voice Coil Material: Kapton Winding Material: CCAW Diaphragm Material: Aluminum Alloy Magnet Weight: 0.44 oz Magnet Material: Neodymium Thiele & Small Parameters Equivalent Volume / Vas:14.6927 LTR Excursion / Xmax: 1.6mm Free Air Resonance / Fs: 85Hz Mechanical Factor / Qms: 3.906 Electrical Factor / Qes: 0.639 Total Factor / Qts: 0.602 DC Resistance / Re: 3.2 ohms Measurements Overall Diameter: 260 x 180mm (10.24 x 7.09") Front Mount Baffle Cutout: 219 x 150 (8.62 x 5.91") Mounting Depth: 85 mm (3.35") Overall Depth: 97 mm (3.81")
- EXTREME PRO AUDIO PERFORMANCE – DS18 PRO-ZT69 6x9” mid-range loudspeaker delivers 275W RMS / 550W MAX, built for loud, clean output and crystal-clear sound in car audio, motorcycle, off-road, and high-SPL systems

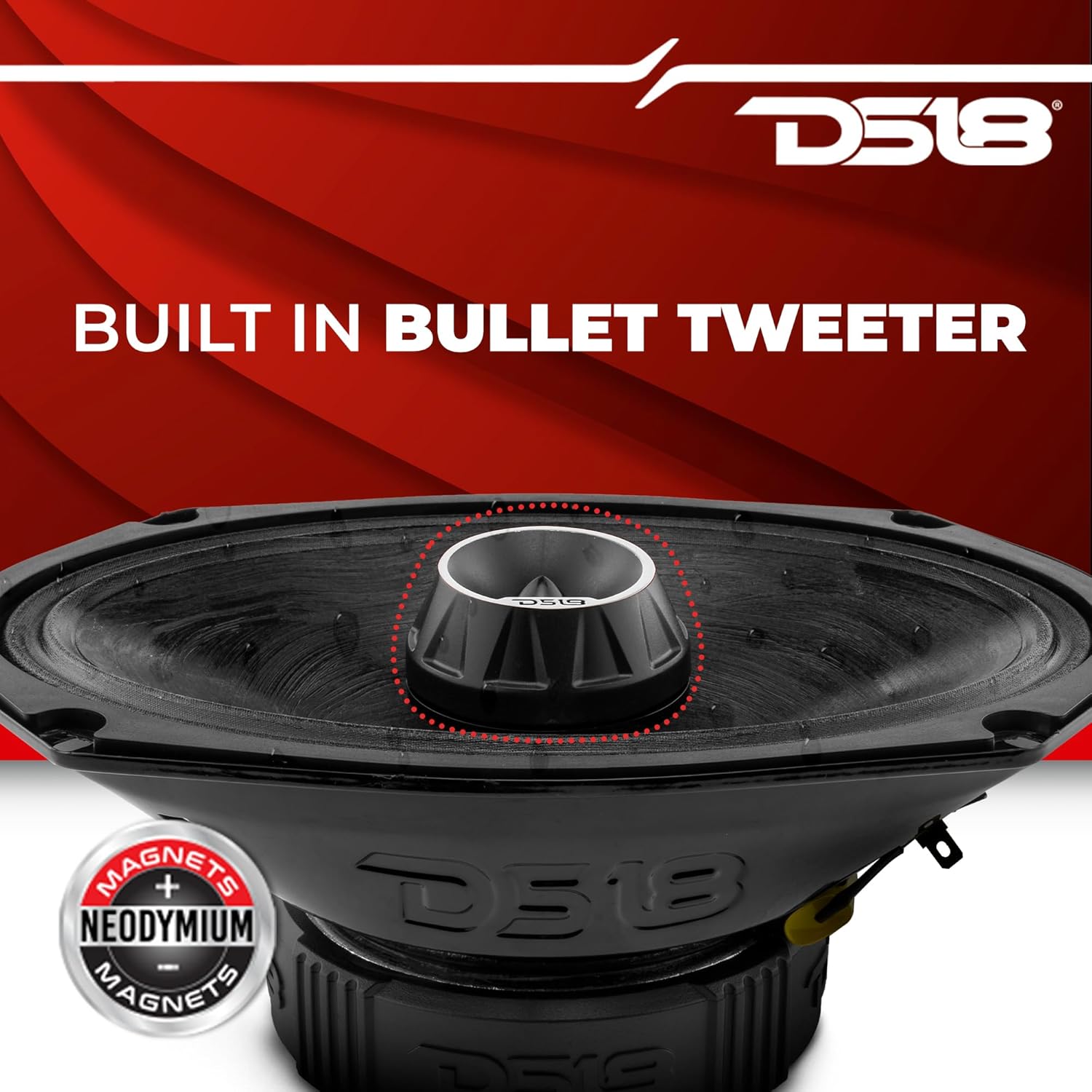

- 2-WAY COAXIAL WITH BULLET TWEETER – Integrated high-frequency bullet tweeter with neodymium magnet produces sharp highs and strong vocal projection, eliminating the need for external tweeters while maximizing efficiency
- WIDE FREQUENCY RESPONSE (60Hz–22KHz) – Full-range pro audio performance delivers tight midbass, powerful mids, and detailed highs for a balanced, high-impact listening experience at any volume
- HIGH EFFICIENCY & EASY INSTALLATION – With 98dB sensitivity and 4-ohm impedance, the PRO-ZT69 gets extremely loud on lower power, making it ideal for factory upgrades or high-powered aftermarket amplifiers
- WATER-RESISTANT BUILD WITH PROTECTIVE GRILL – Rugged water-resistant construction with a steel mesh grill and integrated cloth shade protects against moisture, dust, and sun exposure for long-lasting, reliable performance
| UPC | 810005187701 |
|---|---|
| Brand | DS18 |
| Impedance | 4 Ohms |
| MP3 player | No |
| Model Name | PRO ZT69 |
| Is Electric | Yes |
| Item Weight | 1.69 Pounds |
| Manufacturer | DS18 |
| Model Number | PRO ZT69 |
| Power Source | Corded Electric |
| Speaker Size | 22 Centimeters |
| Speaker Type | Tweeter |
| BuiltIn Media | Grill |
| Is Waterproof | FALSE |
| Mounting Type | Magnetic Mount |
| Warranty Type | Limited |
| Control Method | Touch |
| Controller Type | Corded electric |
| Number of Items | 2 |
| Woofer Diameter | 6 Inches |
| Antenna Location | Professional audio applications, such as live performances, studio recordings, or public address systems |
| Tweeter Diameter | 25.4 Millimeters |
| Audio Driver Size | 6 Inches |
| Audio Driver Type | Dynamic Driver |
| Audio Output Mode | Stereo |
| Compatible Devices | Smartphone, Tablet, MP3 Player, Desktop, Television, Projector, Laptop |
| Enclosure Material | Aluminum Alloy, Neodymium, Kapton, Steel |
| Additional Features | Waterproof |
| SignaltoNoise Ratio | 98 dB |
| Connectivity Protocol | Bluetooth |
| Water Resistance Level | Water Resistant |
| Connectivity Technology | Coil |
| Number of Audio Channels | 2.0 |
| Item Dimensions D x W x H | 3.81"D x 10.24"W x 10.24"H |
| Specific Uses For Product | Pro audio applications, DJ performances, high-power music playback |
| Speaker Maximum Output Power | 550 Watts |
| Subwoofer Connectivity Technology | Wired |
| Global Trade Identification Number | 00810005187701 |
